Lazy Evaluation - Operators

Operator overloading provides a compact syntax for bind expressions. Standard placeholders do not support member operators, but we can create our own placeholders that works seamlessly with bind expressions.

Introduction

Jaakko Järvi, Gary Powell, and Andrew Lumsdaine, “The Lambda Library: Unnamed Functions in C++”, Software: Practice and Experience 33(3), pp. 259-291, 2003.
Jaakko Järvi, Boost.Lambda, 1999-2004.

Overloaded operators for bind expressions predates the introduction of lambda expressions in C++11 by a decade.

Suppose we want to sort a numeric container by their absolute value. We can use std::sort with a comparison lambda expression.

sort(first, last, [](auto a, auto b) { return a * a < b * b; });

Half of the above code is lambda boilerplate. With overloaded operators the comparison bind expression can be written with minimal boilerplating.

sort(first, last, _1 * _1 < _2 * _2);

Lazy Operators

The sorting example can be written using bind expressions directly.

sort(first, last, bind(less{},
                       bind(multiplies{}, _1, _1),
		       bind(multiplies{}, _2, _2));

We can reduce this verbose syntax by using overloaded operators.

Type Traits

We are going to use convenience type traits to check for a lazy type, which is defined as either a bind expression or a placeholder, and to check if there is at least one lazy type in a template parameter pack.

template <typename T>
using is_lazy_expression =
  bool_constant<is_bind_expression_v<remove_cvref_t<T>> ||
                is_placeholder_v<remove_cvref_t<T>>>;

template <typename... Ts>
using any_lazy_expression = disjunction<is_lazy_expression<Ts>...>;

Assume we also defined the _v counterparts.

Operator Overload

Peter Dimov and Barry Revzin, "Adding functionality to placeholder types", P3171, 2024.

P3171 proposes overloaded operators for bind expressions and placeholders.

template <typename Lhs, typename Rhs>
constexpr auto operator+(Lhs&& lhs, Rhs&& rhs)
  requires any_lazy_expression_v<Lhs, Rhs>
{
  return std::bind(plus{}, forward<Lhs>(lhs), forward<Rhs>(rhs));
}

This means that we can create a bind expression by adding placeholders. Assume a and b are normal variables with a numeric type such as int or float.

auto f = a + _1;

// becomes (via above overloaded operator+)
auto f = bind(plus{}, a, _1);

The resulting bind expression can then be invoked with another variable.

auto r = f(b);

// becomes
auto r = plus{}(a, b);

// which becomes
auto r = a + b;

Operator overloading gives us a convenient way of creating bind expressions. We have to overload the other operators as well, but leave that as an exercise for the reader.

Compound Assignment Operator

The standard library does not contain function objects for compound assignment operators, but they are proposed in P3171. A function object for operator+= is used as an example.

template <typename Lhs, typename Rhs>
constexpr auto operator+=(Lhs&& lhs, Rhs&& rhs)
  requires any_lazy_expression_v<Lhs, Rhs>
{
  return bind(via::plus_assign, forward<Lhs>(lhs), forward<Rhs>(rhs));
}

The via::plus_assign function object is proposed by P3171 as plus_equal but has been renamed here to avoid confusion with equality.

namespace via {

inline constexpr struct {
  template <typename Lhs, typename Rhs>
  constexpr auto operator()(Lhs&& lhs, Rhs&& rhs) const
      -> decltype(declval<Lhs>() += declval<Rhs>())
  {
      return forward<Lhs>(lhs) += forward<Rhs>(rhs);
  }
} plus_assign{};

} // namespace via

The call operator has a trailing return type that acts as a constraint to disable illegal usage, such as assigning to a const object.

We put all function objects in the via namespace. The next article will extend them with argument-dependent lookup for lazy functions. Operators already handle argument-dependent lookup so no special handling is needed for compound assignment.

Operator Duality

Notice that we can either do eager evaluation as usual by adding normal variables, or lazy evaluation by adding lazy arguments. This is simply how operator overloading works.

Example of eager evaluation using normal C++ rules

auto r = a + b;

Lazy evaluation using our overloaded operator

auto f = a + _1;

auto r = f(b);
// becomes
auto r = a + b;

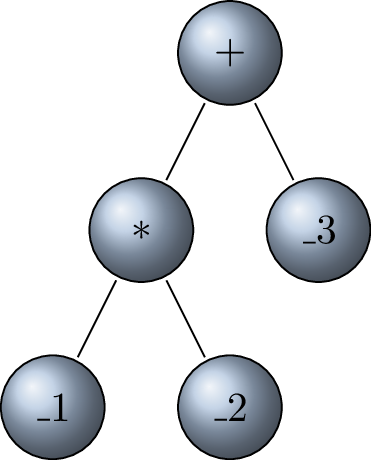

_1 * _2 + _3

Nested Bind Expressions

Compound expressions become nested bind expressions.

auto axpy = _1 * _2 + _3;

// becomes
auto axpy = bind(multiplies{}, _1, _2) + _3;

// which becomes
auto axpy = bind(plus{}, bind(multiplies{}, _1, _2), _3);

These expressions follow the normal operator precedence rules, so we can use parentheses to change precedence.

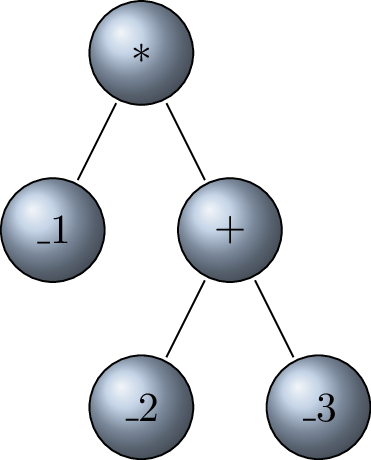

_1 * (_2 + _3)

auto expr = _1 * (_2 + _3);

// becomes
auto expr = _1 * bind(plus{}, _2, _3);

// which becomes
auto expr = bind(multiplies{}, _1, bind(plus{}, _2, _3));

With this we can achieve the goal set out in the introduction.

// Sort using absolute values.
std::sort(first, last, _1  * _1 < _2 * _2);

But we are not quite done yet.

Extended Placeholders

Some operators have to be defined as member operators. As we cannot extend the standard placeholders with member operators, we have to create our own. First a placeholder type is needed.

namespace lazy {

template <int N>
struct placeholder {
  // Put member operators here
};

} // namespace lazy

We can register this type so it can be used anywhere we would use standard placeholders.

A program may specialize this template for a program-defined type T to have the base characteristics of integral_constant<int, N> with N > 0 to indicate that T should be treated as a placeholder type.
-- C++ Standard N4950, section [func.bind.isplace]

This is done by specializing std::is_placeholder.

// Registers extended placeholders
namespace std {

template <int N>
struct is_placeholder<lazy::placeholder<N>>
  : integral_constant<int, N> {};

} // namespace std

Notice that this trait resolves to an integral_constant rather than a bool_constant like other traits. It can still be used in a boolean context because it defines N = 0 to mean no placeholder. So the first placeholder is N = 1, which explains the one-based indexing of placeholders.

We use user-defined literals like 1_p for our placeholders to obtain a compact notation that is not confused with standard placeholders.

namespace lazy::placeholders {

template <char... C>
constexpr auto operator ""_p() -> placeholder<to_int<C...>::value> {
  return {};
}

} // namespace lazy::placeholders

The to_int template converts a string into an integer at compile-time. The implementation is not important to understand placeholders, but can be found in the appendix.

We also place all the overloaded operators in the lazy namespace.

Now we can write

auto f = a + 1_p;

// becomes
auto f = bind(plus{}, a, 1_p);

Member Operator

There are several member operators that would be useful to overload, but we only show the overloaded assignment operator that returns a bind expression that can assign.

template <int N>
struct placeholder {
  template <typename T>
  constexpr auto operator=(T&& t) const {
    return std::bind(via::assign, placeholder<N>{}, forward<T>(t));
  }
};

where via::assign is defined in the same way as via::plus_assign above

namespace via {

inline constexpr struct {
  template <typename Lhs, typename Rhs>
  constexpr auto operator()(Lhs&& lhs, Rhs&& rhs) const
      -> decltype(declval<Lhs>() = declval<Rhs>())
  {
      return forward<Lhs>(lhs) = forward<Rhs>(rhs);
  }
} assign{};

} // namespace via

1_p = 0

Now we can create bind expressions that assigns to placeholders

auto zero = 1_p = 0;

// becomes
auto zero = bind(via::assign, 1_p, 0);

which can be used as

zero(a);

// becomes
via::assign(a, 0);

// which becomes
a = 0;

All of the above is essentially an implementation of the P3171 proposal outside the std namespace. We go beyond this proposal in the next article on lazy functions.

Appendix

A possible implementation of a compile-time string to integer conversion that works for C++11 constexpr.

constexpr int to_int_impl(int result) {
  return result;
}

constexpr int to_int_impl(int result, char c) {
  return 10 * result + (c - '0');
}

template <typename... Ts>
constexpr int to_int_impl(int result, char c, Ts... tail) {
  return to_int_impl(to_int_impl(result, c), tail...);
}

template <char... C>
struct to_int {
  static const int value = to_int_impl(0, C...);
};
